Teatro square 8,5W
TEATRO SQUARE 8,5W 4000K 15° chrome frame
Cod. MIC0116
IP20
Protected from solid bodies larger than 12 mm
II
Protection class II
CRI >90
Colour rendering index >90
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: MIC0116 | Category: Indoor luminaires | Model: Teatro square 8,5W | Product description: TEATRO SQUARE 8,5W 4000K 15° chrome frame | Source type: COB | Color temperature (CCT): 4000K | Color render index (CRI): > 90 | MacAdam (SDCM): < 3 | Lumen output (lm): 648 | Beam angle: 15° | Photobiological risk: RG2 (moderate risk) | LED Lifetime: 50.000 h | Width (mm): 67 | Length (mm): 67 | Height (mm): 78 | Recess hole (mm): 55 x 55 | Weight (g): 180 | IP rating: IP 20 | Finishing colour: White RAL9003 | Type of finishing: Polyester powder coated | Body material: Aluminum | Diffuser material: PC (polycarbonate) | Maximal working temperature: -25° C | Minimal working temperature: +50° C | Nominal power (W): 8,5 | Power factor: > 0,5 | Power supply: 220/240V 50/60Hz | Ballast: Included | Insulation class: II | Dimmable: No |
Lighting data
|
Source type
COB
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 90
|
|
MacAdam (SDCM)
< 3
|
|
Lumen output (lm)
648
|
|
Beam angle
15°
|
|
Photobiological risk
RG2 (moderate risk)
|
|
LED Lifetime
50.000 h
|
Mechanical data
|
Width (mm)
67
|
|
Length (mm)
67
|
|
Height (mm)
78
|
|
Recess hole (mm)
55 x 55
|
|
Weight (g)
180
|
|
IP rating
IP 20
|
|
Type of finishing
Polyester powder coated
|
|
Finishing colour
Crome
|
|
Body material
Aluminum
|
|
Diffuser material
PC (polycarbonate)
|
Electrical data
|
Nominal power (W)
8.5
|
|
Power factor
0,5
|
|
Power supply
220/240V 50/60Hz
|
|
Ballast
Included
|
|
Insulation class
II
|
|
Dimmable
No
|
Marks

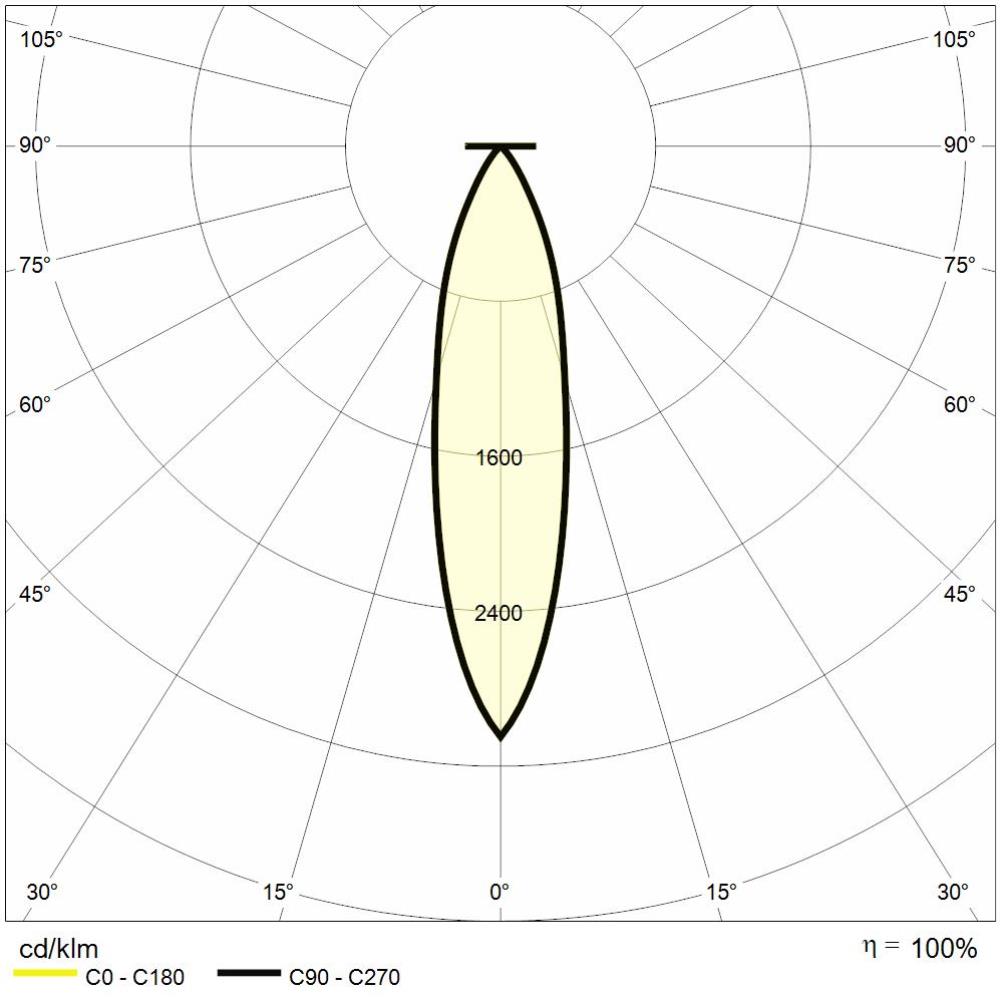

Photometry
Technical drawing
Documentation
