SFACCIATA 7W 4000K IP54 BLACK
Cod. MES0002
IP54
Protected against dust and splashes
I
Protection class I
CRI >90
Colour rendering index >90
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: MES0002 | Category: Outdoor luminaires | Model: Sfacciata | Product description: SFACCIATA 7W 4000K IP54 BLACK | Color temperature (CCT): 4000K | Color render index (CRI): > 90 | MacAdam (SDCM): < 3 | Lumen output (lm): 380 | Beam angle: 50° | Photobiological risk: RG1 (low risk) | Width (mm): 60 | Length (mm): 150 | Height (mm): 95 | Weight (g): 600 | IP rating: IP 54 | Finishing colour: Black RAL9005 | Type of finishing: Polyester powder coated | Body material: Aluminum | Maximal working temperature: -20° C | Minimal working temperature: +50° C | Nominal power (W): 7 | Power factor: > 0,5 | Power supply: 230V 50/60Hz | Ballast: Integrated | Insulation class: I | Dimmable: No |
Lighting data
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 90
|
|
MacAdam (SDCM)
< 3
|
|
Lumen output (lm)
380
|
|
Beam angle
50°
|
|
Photobiological risk
RG1 (low risk)
|
Mechanical data
|
Width (mm)
60
|
|
Length (mm)
150
|
|
Height (mm)
95
|
|
Weight (g)
600
|
|
IP rating
IP 54
|
|
Type of finishing
Polyester powder coated
|
|
Finishing colour
Black RAL9005
|
|
Body material
Aluminum
|
Electrical data
|
Nominal power (W)
7
|
|
Power factor
0,5
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
Marks

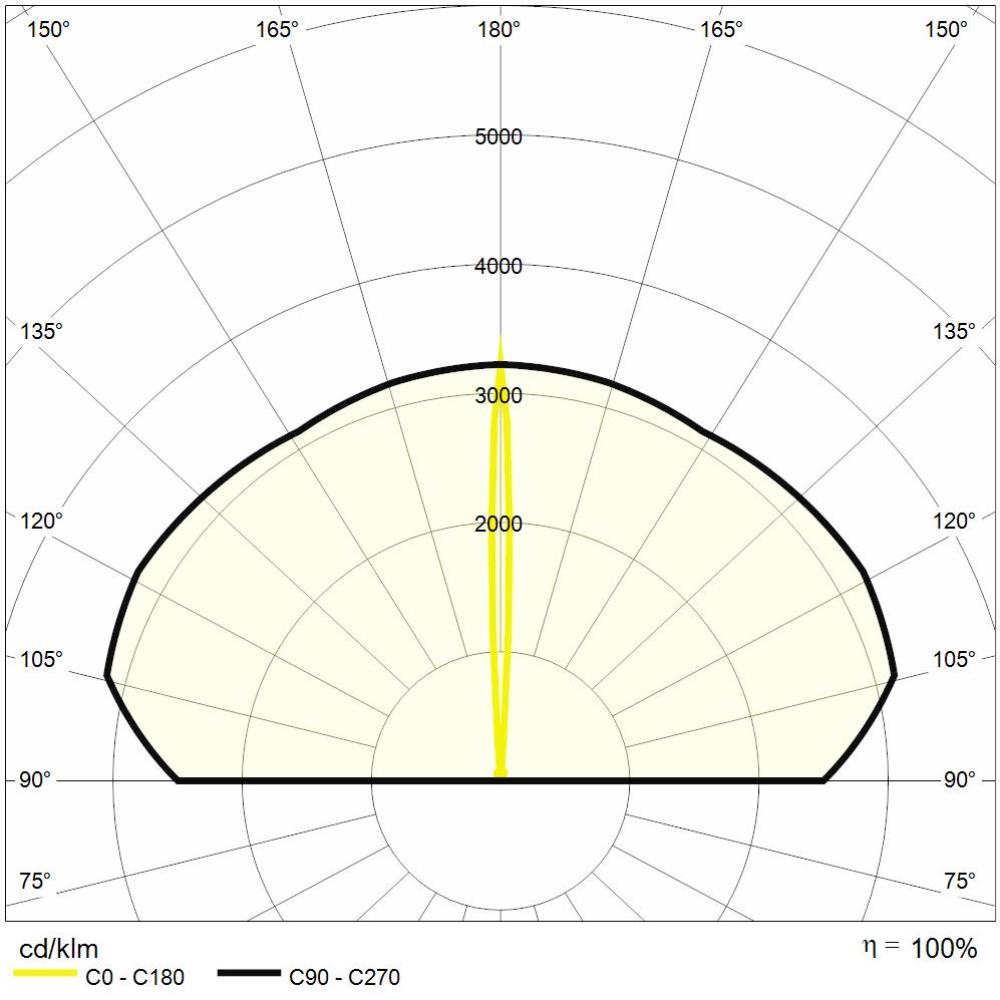

Photometry
Technical drawing
Documentation
