LED Strip 3528 10mm
LED STRIP 3528 16,3W/m 24V 5m IP20 4000K
Cod. 6360837
IP20
Protected from solid bodies larger than 12 mm
G
Energy efficiency class
III
Protection class III
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6360837 | Category: Indoor luminaires | Model: LED Strip 3528 10mm | Product description: LED STRIP 3528 16,3W/m 24V 5m IP20 4000K | Source type: SMD 3528 | Number of LEDs: 240/m | Color temperature (CCT): 4000K | Color render index (CRI): > 80 | MacAdam (SDCM): < 6 | Lumen output (lm): 1152 lm/m | Beam angle: 120° | Photobiological risk: RG1 (low risk) | LED Lifetime: 50.000 h | Energy efficiency class: G | Width (mm): 5000 | Length (mm): 10 | IP rating: IP 20 | Maximal working temperature: -20° C | Minimal working temperature: +45° C | Nominal power (W): 16,3 W/m | Power supply: 24Vdc | Insulation class: III | Dimmable: No |
Lighting data
|
Source type
SMD 3528
|
|
Number of LEDs
240/m
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
1152 lm/m
|
|
Beam angle
120°
|
|
Photobiological risk
RG1 (low risk)
|
|
LED Lifetime
50.000 h
|
|
Energy efficiency class
G
|
Mechanical data
|
Width (mm)
5000
|
|
Length (mm)
10
|
|
IP rating
IP 20
|
Electrical data
|
Nominal power (W)
16,3 W/m
|
|
Power supply
24Vdc
|
|
Insulation class
III
|
|
Dimmable
No
|
Marks

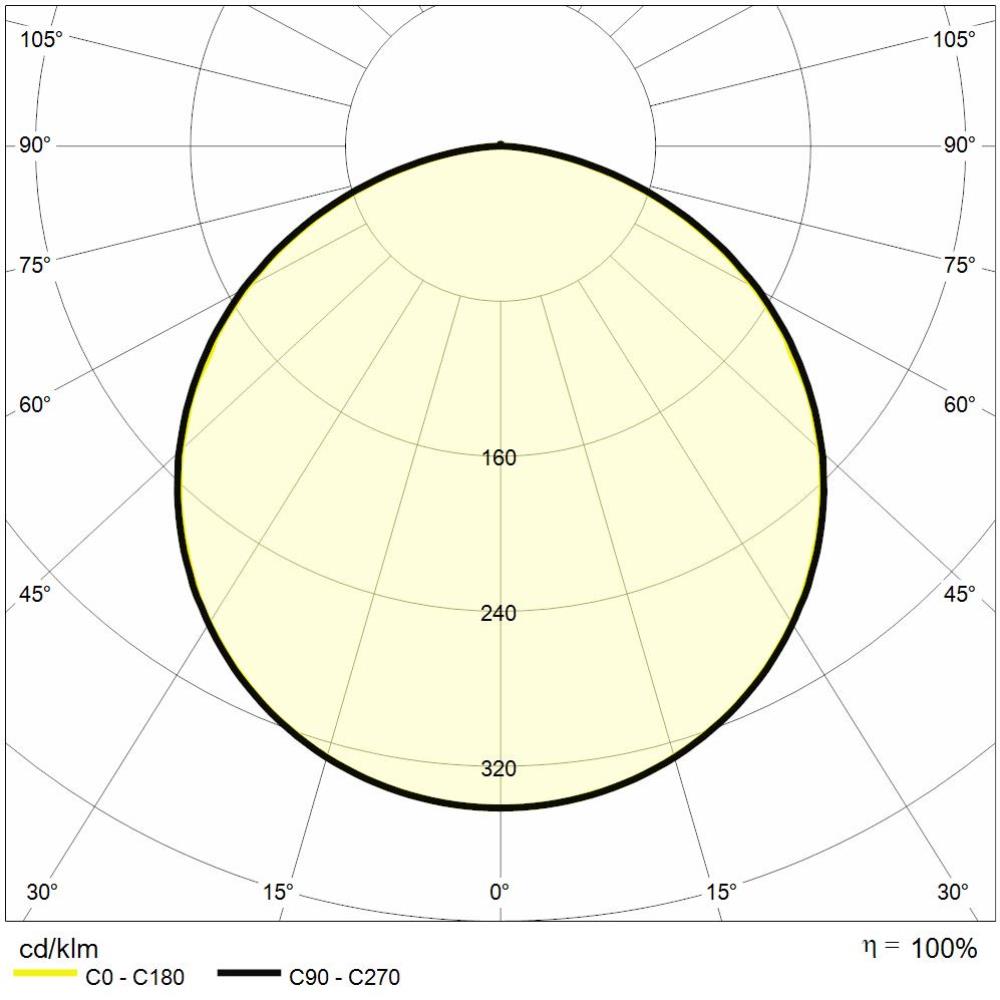

Photometry
Technical drawing
Documentation
Accessories
