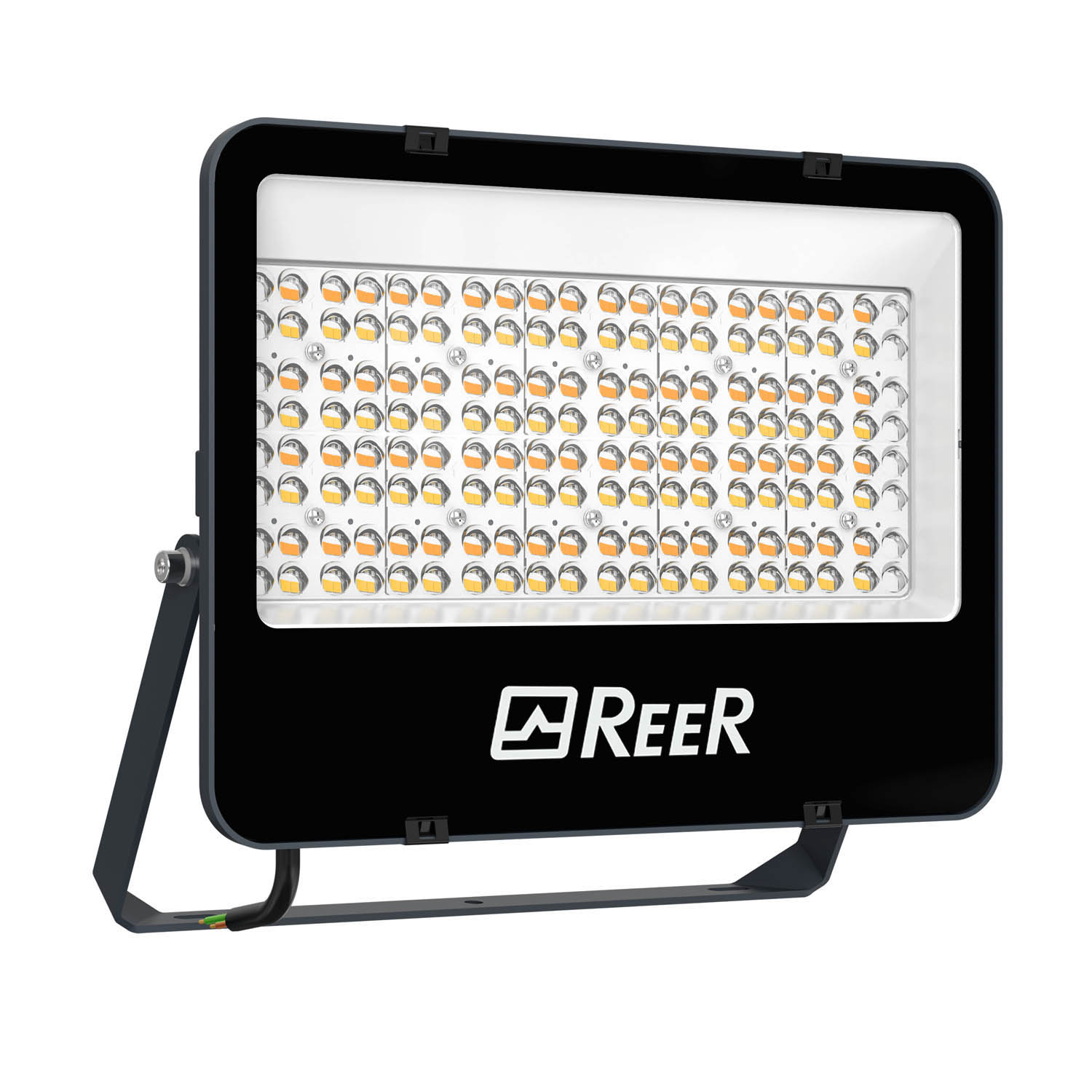

Domino AS 100W
DOMINO AS/2,0 CCT 100W
Cod. 6361186
IP65
Dustproof and protected against water jets
I
Protection class I
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361186 | Category: Outdoor luminaires | Model: Domino AS 100W | Product description: DOMINO AS/2,0 CCT 100W | Source type: SMD | Color temperature (CCT): 3000 / 3500 / 4000K | Color render index (CRI): > 80 | MacAdam (SDCM): < 6 | Lumen output (lm): 13000-14000 | Beam angle: Asymmetric 40° x 80° | Photobiological risk: RG1 (low risk) | LED Lifetime: 50.000 h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): D | Width (mm): 300 | Length (mm): 222 | Height (mm): 45 | Weight (g): 1950 | IP rating: IP 65 | IK rating: IK 07 | Finishing colour: Grey RAL7024 | Type of finishing: Polyester powder coated | Body material: Aluminum | Diffuser material: Tempered glass | Maximal working temperature: -20° C | Minimal working temperature: +40° C | Nominal power (W): 100 | Power factor: > 0,9 | Power supply: 230-240V 50/60Hz | Ballast: Integrated | Insulation class: I | Dimmable: No |
Lighting data
|
Source type
SMD
|
|
Color temperature (CCT)
3000 / 3500 / 4000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
13000-14000
|
|
Beam angle
Asymmetric 40° x 80°
|
|
Photobiological risk
RG1 (low risk)
|
|
LED Lifetime
50.000 h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): D
|
Mechanical data
|
Width (mm)
300
|
|
Length (mm)
222
|
|
Height (mm)
45
|
|
Weight (g)
1950
|
|
IP rating
IP 65
|
|
IK rating
IK 07
|
|
Type of finishing
Polyester powder coated
|
|
Finishing colour
Grey RAL7024
|
|
Body material
Aluminum
|
|
Diffuser material
Tempered glass
|
Electrical data
|
Nominal power (W)
100
|
|
Power factor
0,9
|
|
Power supply
230-240V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
Marks
Photometry
Technical drawing
